Geron GERON card wire
High-quality card wire for needle-punch nonwoven lines — stainless steel, wear-resistant and precision-machined to card evenly without damaging the fiber.
Spare parts & components
Needleboard Handling & Maintenance
A dedicated toolset for safe needle-board handling and maintenance — a rotating maintenance table, storage cart, board lift, handle and a needle-removal tool with exchangeable working parts.
- Genuine parts
- In stock — fast delivery
- Technical support
- Maintenance table (NBMT) — needle-board widths
- 200 – 380 mm
- Maintenance table (NBMT) — needle-board lengths
- 1500 – 3500 mm
- Maintenance table (NBMT) — height adjustment
- Optional electric
- Storage cart (NBS) — capacity
- Up to 12 needle boards
Contact for a quote quoted by configuration
Overview
Product overview

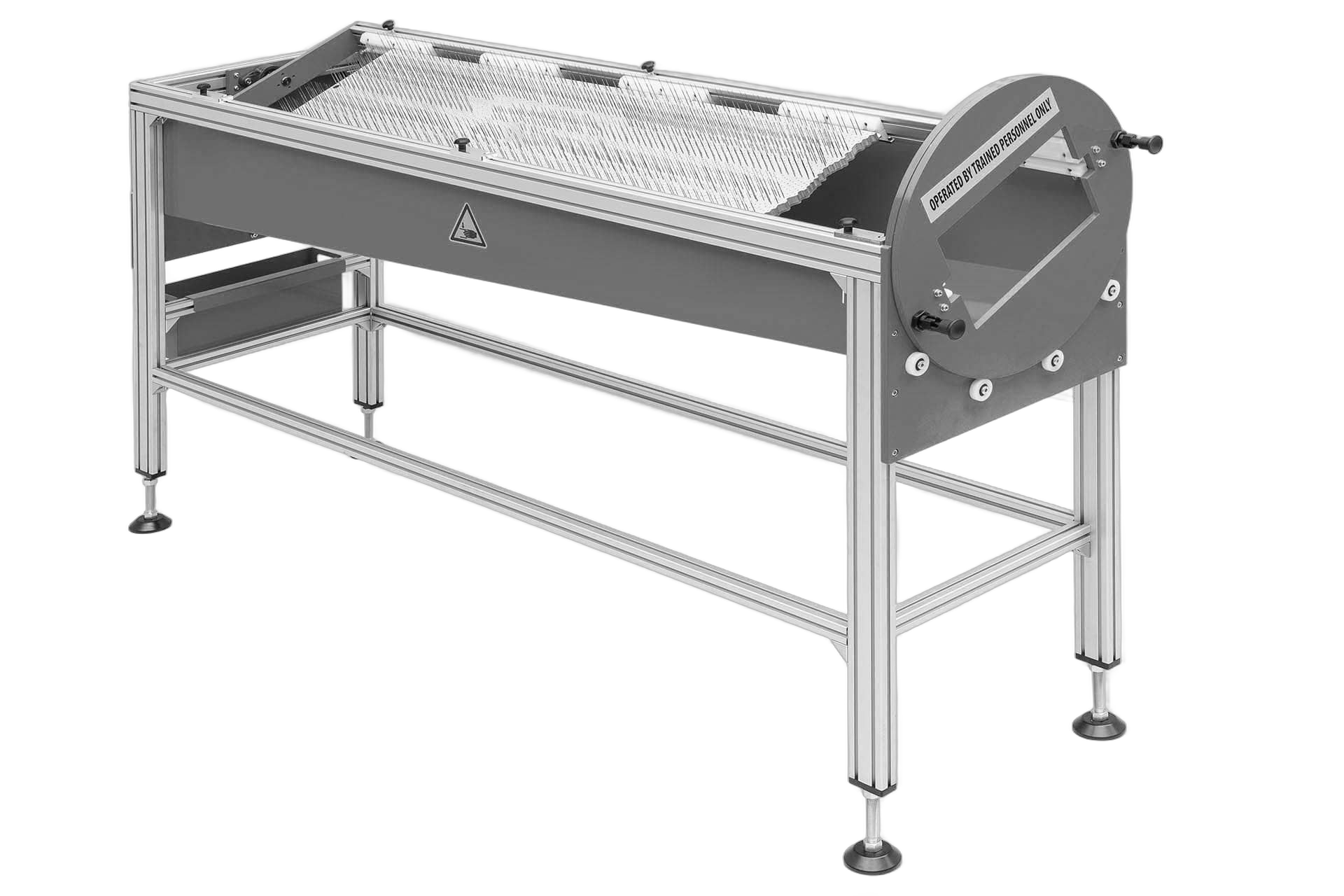

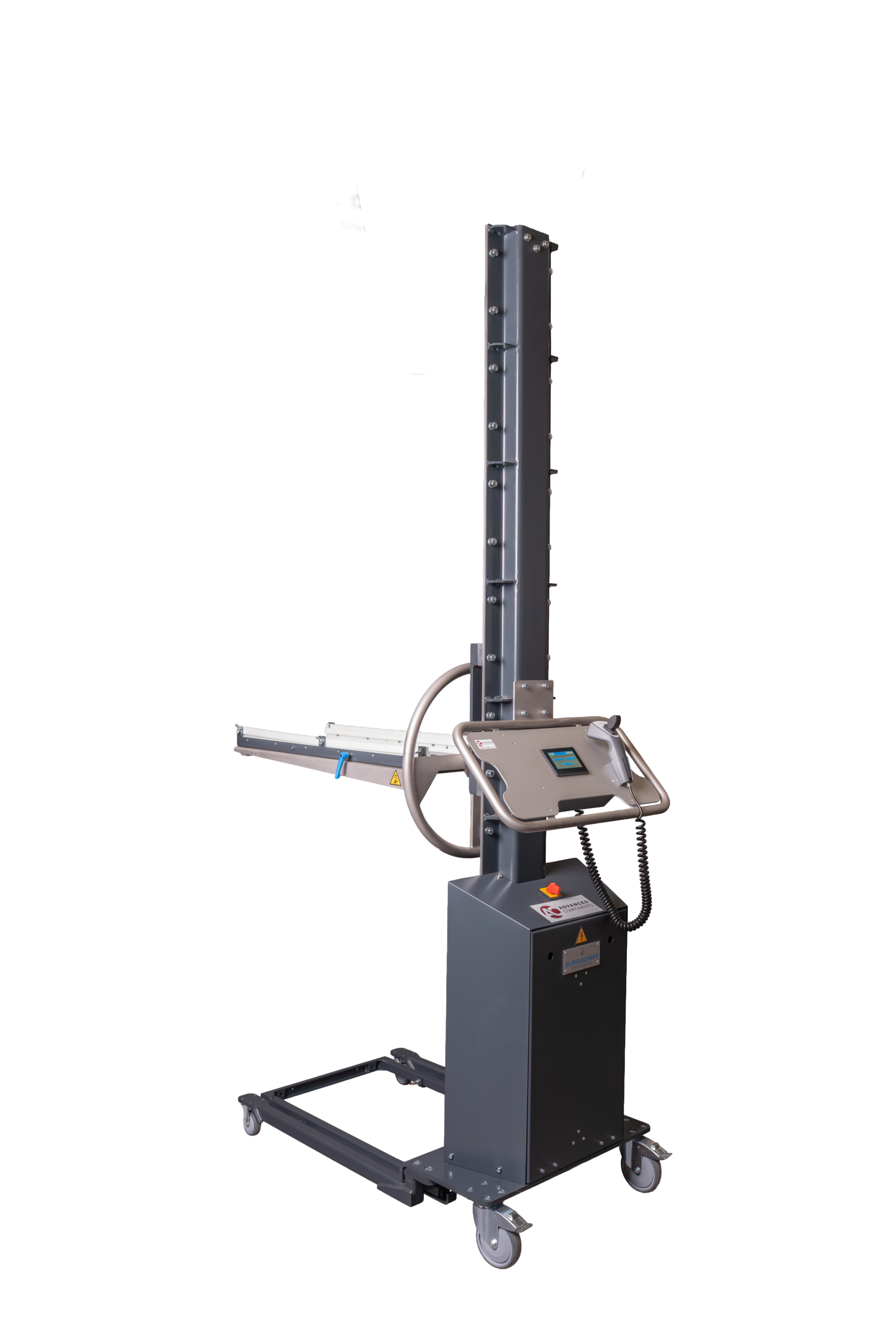

The needle-board handling and maintenance range is a set of dedicated tools for safely removing, transporting, servicing and refitting the needle boards of a needle loom. The needle-board maintenance table (NBMT) has a rotating device to flip boards easily, for boards 200–380 mm wide and 1,500–3,500 mm long, with optional electric height adjustment. The needle-board storage cart (NBS) holds up to 12 boards, up to 350 mm wide and 1,600 mm long, protecting boards while moving them between the repair shop and production. The electronically controlled board lift offers up to 9 memory positions, 4 guide rollers and 2 quick-clamping devices; the needle-removal tool comes with 5 exchangeable working parts for every repair situation. Vina Nonwoven supplies these genuine tools individually or as a complete boxed set, with fast delivery and technical advice.
Technical specs
Configuration & specifications
Maintenance table (NBMT) — needle-board widths 200 – 380 mm
Maintenance table (NBMT) — needle-board lengths 1500 – 3500 mm
Maintenance table (NBMT) — height adjustment Optional electric
Storage cart (NBS) — capacity Up to 12 needle boards
Storage cart (NBS) — max width 350 mm
Storage cart (NBS) — max length 1600 mm
Board lift — needle-board cross sections Up to 2 different
Board lift — memory positions Up to 9 (electronic)
Board lift — guide rollers 4
Board lift — quick-clamping devices 2
Needle-removal tool — exchangeable inserts 5 different working parts
Q & A
Frequently asked questions
What equipment is included in this needle-board handling and maintenance toolset?

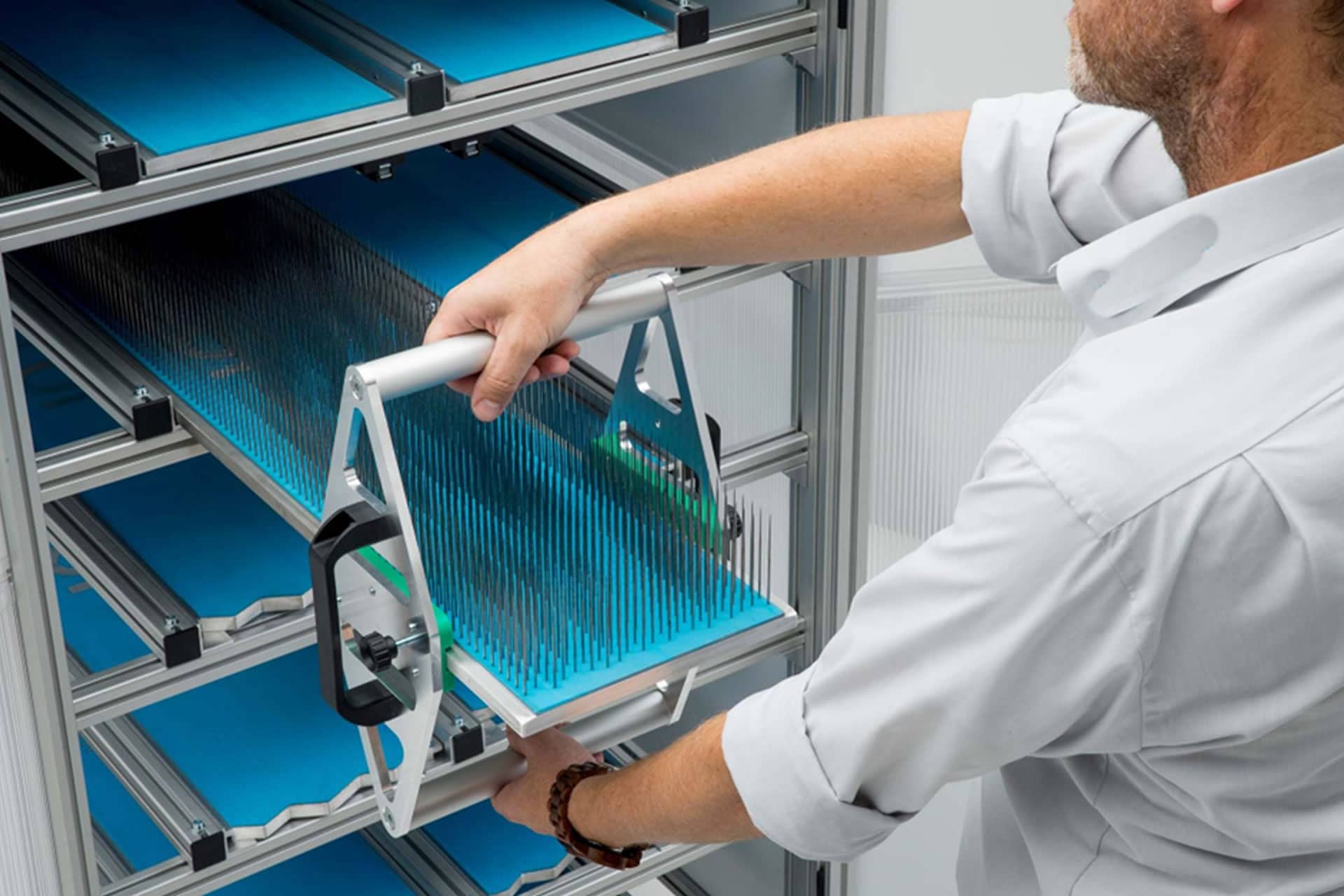

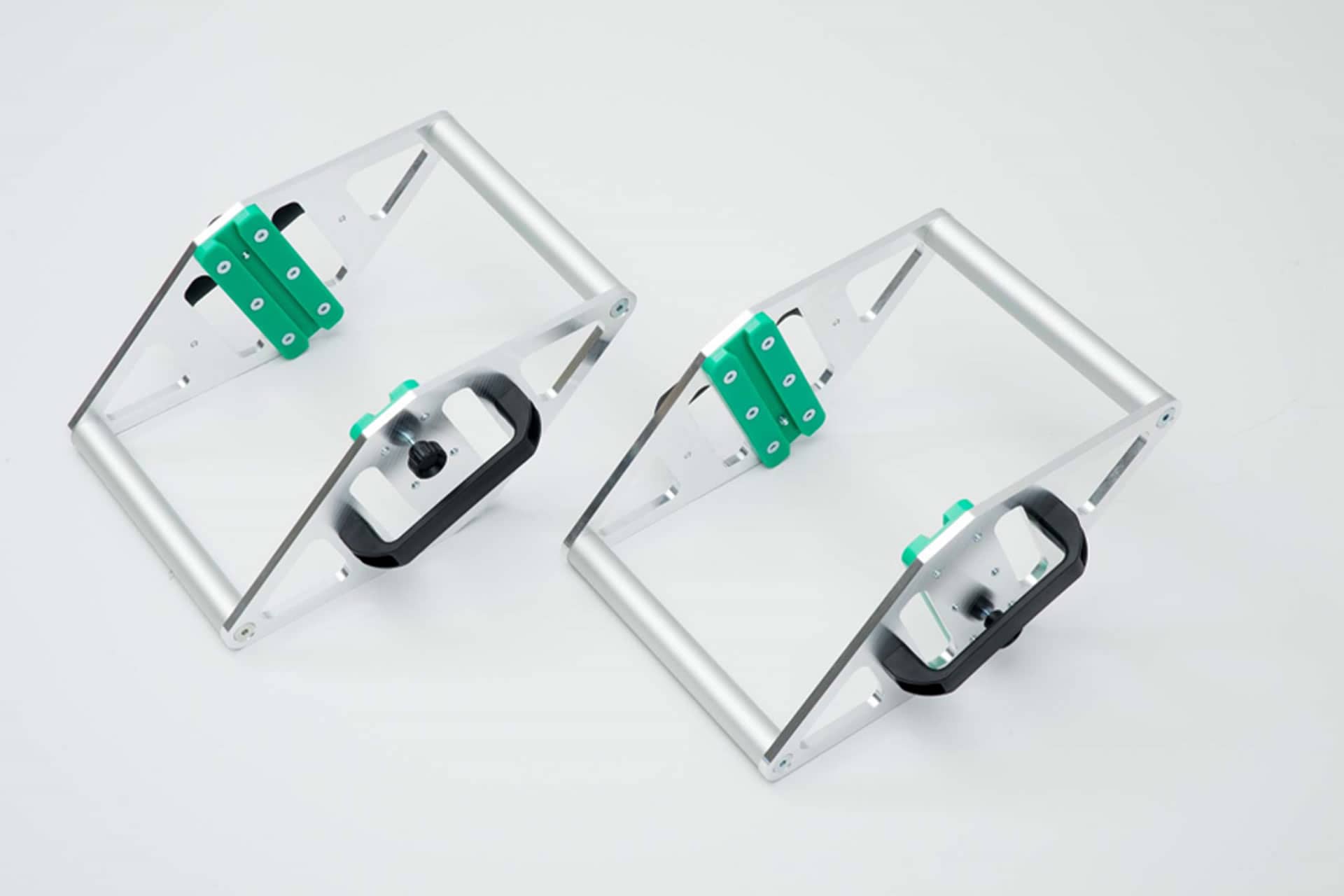

The set includes a rotating needle-board maintenance table (NBMT), a needle-board storage cart (NBS), a needle-board lift (Multitalent), a needle-board handle, and a needle-removal tool with 5 exchangeable working parts. Everything can be bought individually or as a complete set in a professional toolbox.
What needle-board sizes does the maintenance table (NBMT) fit?
The NBMT table fits needle boards with widths of 200–380 mm and lengths of 1500–3500 mm, and offers an optional electric height adjustment for easier, safer flipping of the boards.
How many needle boards does the storage cart (NBS) hold, and does it protect against damage?

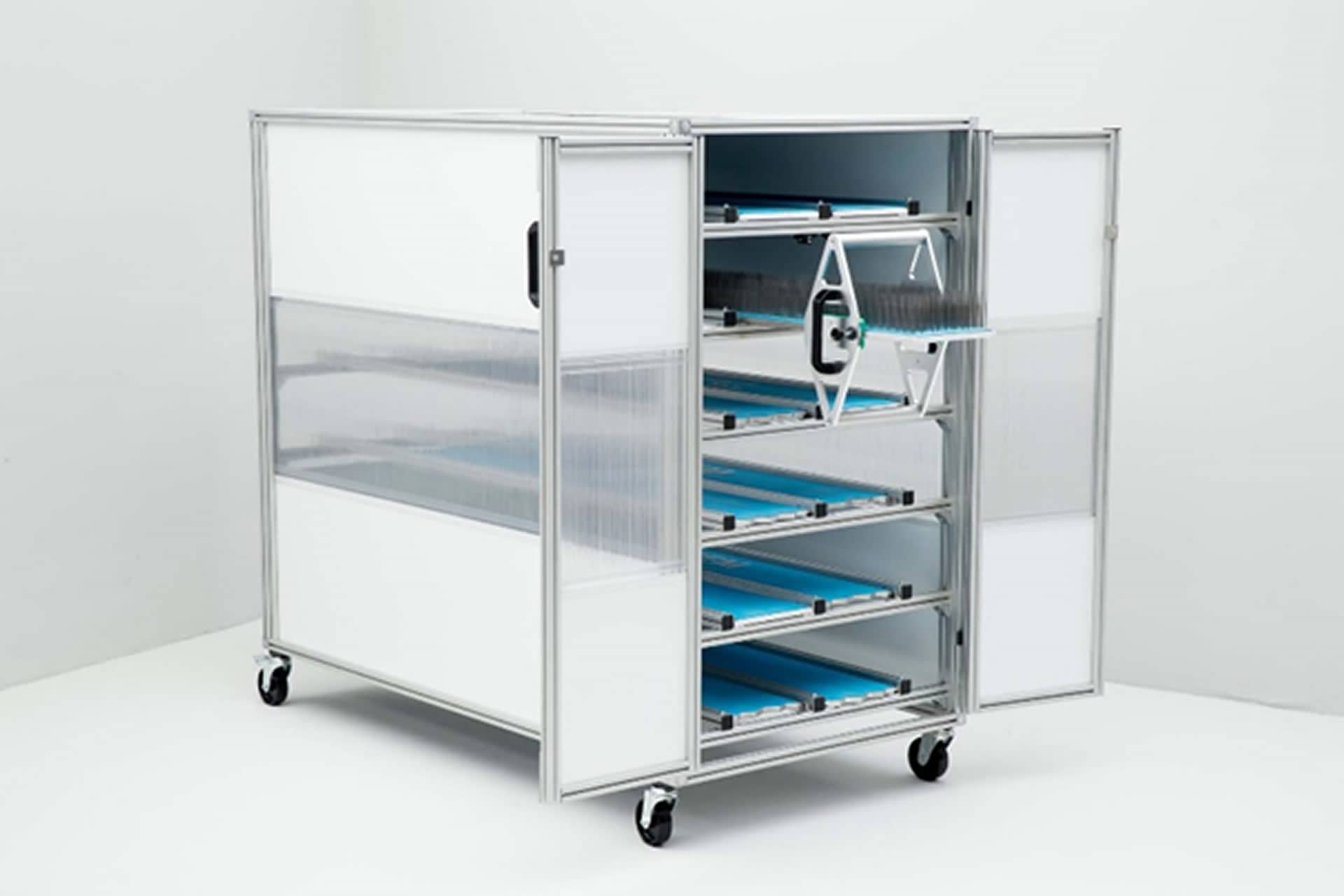

The NBS cart holds up to 12 needle boards, up to 350 mm wide and 1600 mm long; its aluminium-profile frame protects the boards from damage and contamination while moving between the repair shop and production.
Can the needle-removal tool handle every repair situation?
Yes — the tool comes with 5 different exchangeable working parts, letting it cover a wide range of needle types and removal situations on the board.
Where can I get a quote for this needle-board maintenance toolset?
Pricing depends on whether you choose individual tools or the complete set; contact Vina Nonwoven via hotline or Zalo for consultation and a specific quote.
